Due to the wide variety of connectors available, choosing the faceplates-configuration required for your
project might take longer than expected.
Our Sales Representatives are trained to help you choosing the right faceplates for every project.
Let us work for you!!
project might take longer than expected.
Our Sales Representatives are trained to help you choosing the right faceplates for every project.
Let us work for you!!
1/4 Part number: 13623
Accepts two "standard" keystone style jacks. (RJ45 - USB - RCA - S-Video - and more!)
Note: Combine with 3/4 faceplates to fill one side of the box
Accepts two "standard" keystone style jacks. (RJ45 - USB - RCA - S-Video - and more!)
Note: Combine with 3/4 faceplates to fill one side of the box
1/4 Part number: 13634
Accepts two Systimax snap-in style jacks (M Series) . Requires Systimax mounting collar.
Accepts two Systimax snap-in style jacks (M Series) . Requires Systimax mounting collar.
1/4 Part number: 13603
Blank. Use to cover unused openings or to install panel mount connectors.
Note: Combine with 3/4 faceplates to fill one side of the box.
Blank. Use to cover unused openings or to install panel mount connectors.
Note: Combine with 3/4 faceplates to fill one side of the box.
3/4 Part number: 13601
Accepts standard duplex outlets. Supplied with barriers to separate different voltage circuits.
Note: Combine with 1/4 faceplates to fill one side of the box.
Accepts standard duplex outlets. Supplied with barriers to separate different voltage circuits.
Note: Combine with 1/4 faceplates to fill one side of the box.
3/4 Part number: 13612
Accepts Decorative (GFCI) style outlets and multiple applications for data, A/V & more!
Note: Combine with 1/4 faceplates to fill one side of the box.
Accepts Decorative (GFCI) style outlets and multiple applications for data, A/V & more!
Note: Combine with 1/4 faceplates to fill one side of the box.
3/4 Part number: 1304
Accepts a single power outlet (SSR - 1 3/8" Dia.)
Note: Combine with 1/4 faceplates to fill one side of the box.
Accepts a single power outlet (SSR - 1 3/8" Dia.)
Note: Combine with 1/4 faceplates to fill one side of the box.
3/4 Part number: 13606 - Discontinued
Accepts standard single gang wallplates - Ask for details.
Note: Combine with 1/4 faceplates to fill one side of the box.
Accepts standard single gang wallplates - Ask for details.
Note: Combine with 1/4 faceplates to fill one side of the box.
3/4 Part number: 14606
Accepts three XLR or 1/4" jacks.
Note: Combine with 1/4 faceplates to fill one side of the box.
Accepts three XLR or 1/4" jacks.
Note: Combine with 1/4 faceplates to fill one side of the box.
3/4 Part number: 13600
Blank. Use to cover unused spaces or for panel mount connectors (Ie: 1/4", BNC & more!)
Note: Combine with 1/4 faceplates to fill one side of the box.
Blank. Use to cover unused spaces or for panel mount connectors (Ie: 1/4", BNC & more!)
Note: Combine with 1/4 faceplates to fill one side of the box.
4/4 Part number: 44644
Accepts (1) standard duplex outlet + (4) Systimax -M Series- Jacks (Require Systimax mounting collar
Note: Fills one side of the box.
Accepts (1) standard duplex outlet + (4) Systimax -M Series- Jacks (Require Systimax mounting collar
Note: Fills one side of the box.
4/4 Part number: 44633

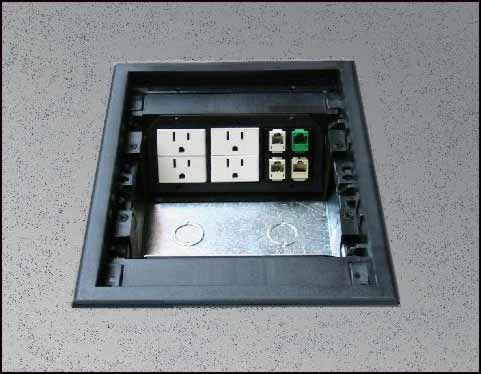

Accepts (1) standard duplex outlet + (4) standard keystone style jacks.
Note: Fills one side of the box.
Accepts (1) standard duplex outlet + (4) standard keystone style jacks.
Note: Fills one side of the box.
4/4 Part number: 44607 Fit-IN System
Accepts six modules for power, data, voice and A/V applications. Scroll down for details!
Note: Fills one side of the box.
Accepts six modules for power, data, voice and A/V applications. Scroll down for details!
Note: Fills one side of the box.

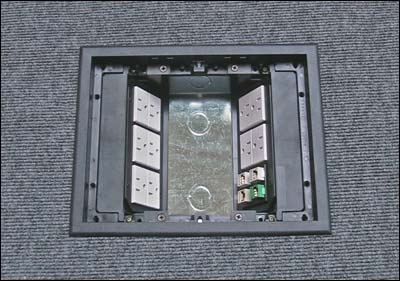

FBS is pleased to introduce the new and exclusive Fit-IN system
that allows to combine power, data and communications in a
reduced space. The installation is easier and faster than ever
and with no need of tools.
The Fit-IN modular system allows the user to place up to 12
modular inserts for power, VGA, RJ - RCA - S-Video- 3.5 mm
Mic. - USB - and most of the keystone style jacks inside PMC
floor boxes. Now, you can place all services in just one box.
No extra or different box dimensions are needed anymore!!
that allows to combine power, data and communications in a
reduced space. The installation is easier and faster than ever
and with no need of tools.
The Fit-IN modular system allows the user to place up to 12
modular inserts for power, VGA, RJ - RCA - S-Video- 3.5 mm
Mic. - USB - and most of the keystone style jacks inside PMC
floor boxes. Now, you can place all services in just one box.
No extra or different box dimensions are needed anymore!!
Use the keystone style port module Part number 64 for RJ jacks, USB, RCA, S-Video, F style connectors,
ST & SC fiber optic connectors, 3.5 mm mic. and most of the standard keystone style connectors.
For VGA use part number 67. Ask for details.
ST & SC fiber optic connectors, 3.5 mm mic. and most of the standard keystone style connectors.
For VGA use part number 67. Ask for details.
Fit-IN System
(*)Part number FBS65 accepts RJ45 Cat5, Cat6 slim profile or high density.
(*)Part numbers 62, 63 and 67 provide flush finish between the jack and the module.
(*)Barrier separates low and line voltage circuits.
(*)Part numbers 62, 63 and 67 provide flush finish between the jack and the module.
(*)Barrier separates low and line voltage circuits.
Copyright © 2017 Floor Box Systems - All rights reserved
The PMC floor boxes accept most industry standard devices from a wide range of manufacturers
as well as our exclusive Fit-IN System. The wide variety of faceplates permit to install power outlets,
RJ jacks, USB, XLR, S-Video, VGA, HDMI, RCA, 3.5mm mic., component connectors and more!
as well as our exclusive Fit-IN System. The wide variety of faceplates permit to install power outlets,
RJ jacks, USB, XLR, S-Video, VGA, HDMI, RCA, 3.5mm mic., component connectors and more!
Mon. to Fri. - 8 AM to 5 PM ET.
Connectivity options
Faceplates for PMC & WFB Floor boxes
Faceplates are available in three different dimensions identified as (1/4) "One quarter", (3/4)
"Three quarters" and (4/4) "Four quarters" types.
"Three quarters" and (4/4) "Four quarters" types.
Each side of the box is filled with (4/4) "Four quarters" (1/4 + 3/4).
Select the appropriated faceplates to complete 4/4 "Four quarters".
(ie: One (1/4) + One (3/4)= 4/4 fills side A)
(ie: One (1/4) + One (3/4)= 4/4 fills side A)
| FBS61 |
| FBS62 |
| FBS63 |
| FBS64 |
| FBS65 |
| FBS66 |
| FBS67 |
NOTE: Four 1/4 type faceplates cannot be installed in the same side.
