Ordering is easier than ever. Please select the part number in accordance to the required  cover material and characteristics.
Part numbers shown are for the kit (Includes box and cover). Faceplates sold separately.

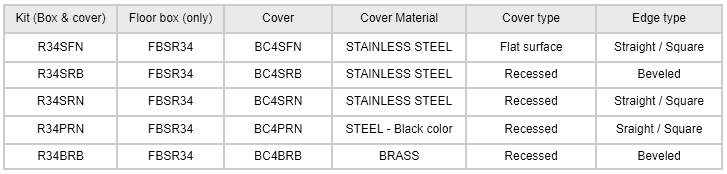

Ordering information
Features
  • Recessed surface: 7/16" recess
    for floor covering material
  • Tunnel - Easy to wire to next
    compartment

  • Extra protection Powder coated box
Faceplates for R34 Floor Boxes
Four gang electrical floor box
The R34 electrical floor box is a four gang shallow  box
3 5/16” (84 mm)  suitable for installation in wood
structured floor and raised access floors. This electrical
floor box  accepts a wide variety of line power, data  and
low voltage connectors providing the perfect solution for
any project.

Removable barriers permit access to adjacent
compartments and facilitate the wiring related jobs.

The covers are available in solid brass and stainless steel
material, brush finish with 7/16" (12 mm) recessed top
surface to accept any floor covering material.

Two cable guards protect and reduce risk of damage to all
incoming and outgoing cables while a retractable handle
facilitates the access to box services.
Covers for R34 electrical floor boxes
Each compartment is isolated with its own removable barrier (supplied). For VGA, RJ's jacks, XLR's and most audio-video jacks
please use our part #11612 and #DECF6W. Visit
Connectivity Options for details.
The R34 electrical floor box accepts four faceplates for power, data and audio-video applications.
Installation Instructions
Catalog sheets
Supporting documents.
The low profile beveled flange hides edges of hard surface
flooring and prevents the carpet from fraying.

Please see "Ordering instructions" for part numbers..

R34 Floor box

Stainless steel cover w/recess and beveled edge
Brass cover w/recess and beveled edge
The R34 is supplied as a kit which includes the floor box and the cover. The Kit number or part number (for the kit) is
assigned depending on the cover selected. See ordering information below for details.
# R34BRB
Floor box with brass cover.
Brass cover has beveled
edges and recessed top.
# R34SRB
Floor box with stainless
steel cover.
SS cover has beveled
edges and recessed top.
Frame - Flange -Lid
  • Handle: Two retractable handles
    facilitates the access to box services.
Floor box
  • Galvanized steel housing - 16 GA
    Powder coated galvanized steel housing
    Provides added strength and reliability

  • The painted interior offers a professional
    and highly aesthetic look.

  • Ultra Low box - Easy installation in low
    profile floors (3  5/16'' depth).
  • Material - Stainless steel and Brass-
    Brushed  finish
  • Subtle beveled flange hide edges of
    hard surface flooring and prevents the
    carpet from fraying.
  • Cable guards with rubber foam
     Can be tilted when in use or closed when
     not used.
  • Knockouts 12  for 1" conduits.
  • Non-Painted knockouts area assures
proper bonding and facilitates the
installation process.
  • Locking clips - Quick and secure
    installation to different floor thicknesses
  • Manufactured in compliance with
    UL514A Standard
3/16" (4mm)
