- The CB4008 junction boxes are suitable for installation in concrete floors -interior
dry locations only. The junction boxes are perfect for data centers, commercial
office buildings and places where underfloor wiring distribution is required.
Part # CB4008
Features
Quick and easy installation
Box 16 Ga Galvanized steel
Aesthetic design
PMC50 coordinated flange
11 GA steel screw blank cover
Depth cover adjustable up to 1'' to
accept floor covering
Box 16 Ga Galvanized steel
Aesthetic design
PMC50 coordinated flange
11 GA steel screw blank cover
Depth cover adjustable up to 1'' to
accept floor covering
Grounding screw
Leveling feet
18 Concentric knockouts
Black, Grey or beige colors
Provides different conduits size feed
(1/2 and 3/4 In.)
Leveling feet
18 Concentric knockouts
Black, Grey or beige colors
Provides different conduits size feed
(1/2 and 3/4 In.)
Click to enlarge
Copyright © 2017 Floor Box Systems - All rights reserved
Mon. to Fri. - 8 AM to 5 PM ET.
The FBS Junction boxes provide an excellent solution to join different runs or
change the direction of the conduits or cables, and provide space for the connection
and branching of the enclosed conductors. The CB4008 concrete junction boxes
are supplied with 12 concentric knockout's for 1/2" and 3/4'' conduits.
change the direction of the conduits or cables, and provide space for the connection
and branching of the enclosed conductors. The CB4008 concrete junction boxes
are supplied with 12 concentric knockout's for 1/2" and 3/4'' conduits.
CB4008 junction box
Installation Instructions
Catalog sheets
Supporting documents.

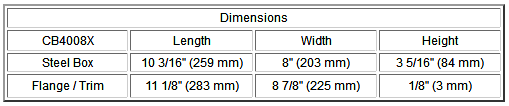

Replace X for color code:
Black= B Gray=G Almond= A
Black= B Gray=G Almond= A
The FBS CB4008 Junction boxes are suitable for use in concrete floors, interior dry
locations where the accumulation of scrub water is unlikely to occur..
locations where the accumulation of scrub water is unlikely to occur..
