Fit-IN Modular System
UL Listed
8 AM - 5 PM ET.

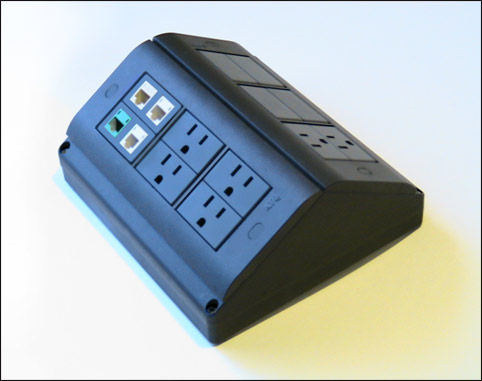

Multi-Snap Table box
TM
The Multi-Snap is a smart option when a
surface mount box is required. The innovative
design permits you to configure the box with 12
FBS modules of your choice for power and low
voltage applications. The aesthetic design
provides the perfect look for all decor styles.
surface mount box is required. The innovative
design permits you to configure the box with 12
FBS modules of your choice for power and low
voltage applications. The aesthetic design
provides the perfect look for all decor styles.
TM
The surface mount box is made of high impact
thermoplastic, suitable for installations in walls,
conference tables and desks, is the ideal
solution for commercial offices, schools, data
centers and places where an easy accessible
multi-service box is required.
thermoplastic, suitable for installations in walls,
conference tables and desks, is the ideal
solution for commercial offices, schools, data
centers and places where an easy accessible
multi-service box is required.
| |||||||||||||
Supporting documents.
The MS10166 is
supplied with a barrier
that separates
circuitsand divides
the box into one third
and two thirds for four
and eight modules
respectively.
supplied with a barrier
that separates
circuitsand divides
the box into one third
and two thirds for four
and eight modules
respectively.
Features
Two compartments w/barrier
High impact plastic housing
Capacity: 12 modules
Front loading snap-in style
Yoke UL 94 V0 material.
Keystone, Minicom and Systimax M jacks.
5 years warranty
High impact plastic housing
Capacity: 12 modules
Front loading snap-in style
Yoke UL 94 V0 material.
Keystone, Minicom and Systimax M jacks.
5 years warranty
The snap-in modular system allows you to
configure the box with 12 modules of your
choice for power and low voltage applications
such as data, voice, audio and video.
configure the box with 12 modules of your
choice for power and low voltage applications
such as data, voice, audio and video.
To install phone/data, USB, HDMI, Coax., 3.5
mm mic. and most keystone style jacks use the
keystone bezel Part # FBS64. For VGA
connector use the part # 1567.(See catalog
page 53 for further details)
mm mic. and most keystone style jacks use the
keystone bezel Part # FBS64. For VGA
connector use the part # 1567.(See catalog
page 53 for further details)
