- The Multi-Snap table box is a smart option when a surface mount box with power,
data or AV is required. The innovative and aesthetic design provides the perfect look
for all decor styles.

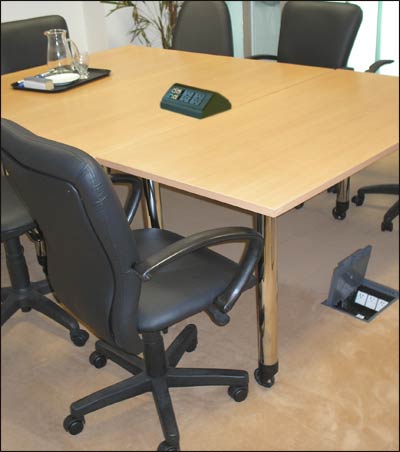

This table box is made of high impact thermoplastic and suitable for installation in
walls, conference tables and desks.
For floor applications please visit "Surface mount floor boxes"
The Multi-Snap service fitting can be configured with 12 modules of your choice for
power, data and audio-video applications. The snap in style modular system permit a
quick and secure installation reducing time and labor costs.

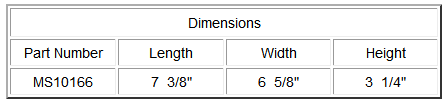

The MS10166 surface mount box can be applied to a single gang outlet box or directly
on raised /wood surfaces. Please download the installation instructions for further
details.
Click over the image to enlarge
Features
Easy to handle, easy to install
Snap-ln - 7 Modules to choose from
Supports future changes
Large Capacity: Up to 12 modules
Accepts standard keystone style jacks
Accepts Panduit Mini-Com jacks
Accepts Systimax M Series jacks
Snap-ln - 7 Modules to choose from
Supports future changes
Large Capacity: Up to 12 modules
Accepts standard keystone style jacks
Accepts Panduit Mini-Com jacks
Accepts Systimax M Series jacks
Non-conductive body material
Barriers separate circuits
High impact thermoplastic
UL 94 V0 material
15A Receptacles -UL Listed
Configurable (AC, Data, A/V)
5 years warranty
Barriers separate circuits
High impact thermoplastic
UL 94 V0 material
15A Receptacles -UL Listed
Configurable (AC, Data, A/V)
5 years warranty
Connectivity Options
Fit-IN Modular System
Part numbers 62 and 65 accept RJ45 Cat 5, Cat6 or high density jacks.
Part numbers 62, 63 and 67 provide flush finish between the jacks and the module.
Copyright © 2017 Floor Box Systems - All rights reserved
Mon. to Fri. - 8 AM to 5 PM ET.
Multi-snap Table Box
UL Listed
Installation Instructions
Catalog sheets
Supporting documents.
| FBS61 |
| FBS62 |
| FBS63 |
| FBS64 |
| FBS65 |
| FBS66 |
| FBS67 |
- The Fit-in modular system allows you to configure and snap 12 modules of your choice for power
and low voltage applications into the box.
Choices include: 15A UL Listed Power outlets, blank modules, single or double ports for standard
keystone style jacks as well as modular inserts for "non-standard" jacks such as Panduit,
Systimax (M Series) and VGA connectors.
For USB, RCA, S-Video, F style connectors, ST & SC, 3.5 mm mic. and most standard keystone
style connectors use the keystone style module Part number FBS64 .
For VGA use part number FBS67. Please click here for details.
