Slab on grade floor box for concrete floor
C2X Concrete Floor Boxes
Concrete floor boxes (Two gang & up to six gang).
The C2X concrete floor boxes provide a versatile solution for
multiple outlets into a functional, aesthetic and cost-effective
box for concrete applications.
multiple outlets into a functional, aesthetic and cost-effective
box for concrete applications.
The low profile box, 3 5/16” (84 mm) , configured with multiple
faceplates and our exclusive Fit-IN modular system provides
a smart choice optimizing the box capacity.
faceplates and our exclusive Fit-IN modular system provides
a smart choice optimizing the box capacity.
Box covers are made out of steel (coated), brass or
stainless steel with several options such as the edges,
beveled or straight, and the top surface, flat or recessed.
The recessed surface is 7/16” (12 mm) to permit the
installation of carpet, terrazzo, tile etc. The cover also
features two retractable handles which facilitate the access
to box services while two cable guards (exits) protect
outgoing cables.
stainless steel with several options such as the edges,
beveled or straight, and the top surface, flat or recessed.
The recessed surface is 7/16” (12 mm) to permit the
installation of carpet, terrazzo, tile etc. The cover also
features two retractable handles which facilitate the access
to box services while two cable guards (exits) protect
outgoing cables.
The floor boxes are suitable for installation in slab on grade
and concrete floors interior dry locations only, where the
accumulation of scrub water is unlikely to occur.
and concrete floors interior dry locations only, where the
accumulation of scrub water is unlikely to occur.
Steel concrete floor box
- Solid cover Material: Stainless steel,
brass and black painted steel
- Cable guards & retractable handle
- Can be tilted when in use or closed
when not used.
- Straight edges - For wood, tile etc
- Subtle beveled flange - Hide edges of
hard surface flooring and prevents the
- carpet from fraying.
- Built in Tunnel - Easy to wire to/from
opposite side
- 16 Knockouts (8 per compartment) for
up to 1" conduits.
- Manufactured in compliance with the
UL514A standard
- Removable barriers separate circuits
- Galvanized steel housing - 16 GA
Powder coated galvanized steel housing
Provides added strength and reliability
- Non-Painted knockouts area assures
- proper bonding and facilitates the
- Shallow box - Easy installation in
concrete floors (3 5/16'' depth).
KIT # C2XSRB
C2X box + stainless steel cover
(Beveled edges & recessed top)
C2X box + stainless steel cover
(Beveled edges & recessed top)
KIT # C2XSRN
C2X box + stainless steel cover.
(Straight edges and recessed top)
C2X box + stainless steel cover.
(Straight edges and recessed top)
KIT # C2XSFB
C2X box + stainless steel cover.
(Beveled edges and flat solid surface)
C2X box + stainless steel cover.
(Beveled edges and flat solid surface)
KIT # C2XSFN
C2X box + flat SS cover.
(Square edges & flat solid surface)
C2X box + flat SS cover.
(Square edges & flat solid surface)
KIT # C2XBRB
C2X steel box with brass cover.
Brass cover has beveled edges
and recessed top.
C2X steel box with brass cover.
Brass cover has beveled edges
and recessed top.
KIT # C2XBRN
C2X Steel box with brass cover.
Brass cover has straight edges and
recessed top.
C2X Steel box with brass cover.
Brass cover has straight edges and
recessed top.
KIT # C2XPRB
C2X Steel box with black cover.
Steel cover has beveled edges and
recessed top.
C2X Steel box with black cover.
Steel cover has beveled edges and
recessed top.
KIT # C2XPFB
Steel box with black cover.
Cover has flat surface and beveled
edges.
Steel box with black cover.
Cover has flat surface and beveled
edges.

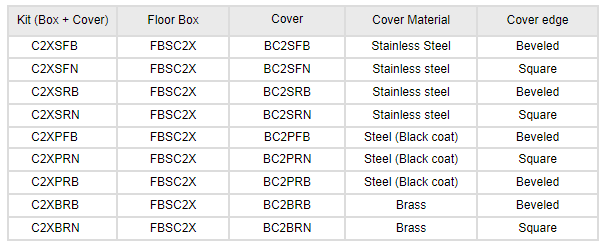

Select the Part number from the following chart. Kits include box, cover and temporary construction cover.
Faceplates and devices sold separately.
Faceplates and devices sold separately.
Copyright © 2017 Floor Box Systems - All rights reserved
Mon. to Fri. - 8 AM to 5 PM ET.
Ordering information
Features
C2X Floor Box covers
Installation Instructions
Catalog sheets
Support documents.
The C2X floor boxes are supplied as a kit which includes the floor box, cover and a temporary construction cover. The Kit number or
part number (for the kit) is assigned depending on the cover selected. See ordering information below for details.
part number (for the kit) is assigned depending on the cover selected. See ordering information below for details.
- Removable levelling bars for
retrofit applications
Frame - Flange - Lid
Straight / Square edges - 3/16" ADA compliance
